Installing block paving on sloped driveways in Wigan requires careful consideration of gradient limits, drainage requirements, and specialist installation techniques to prevent movement and ensure longevity.

The maximum recommended gradient for standard block paving is 1 in 6 (approximately 17 degrees). Beyond this slope, blocks can shift under vehicle weight and weather conditions, particularly during Wigan’s frequent wet periods.

Critical Installation Requirements for Slopes

When installing block paving on sloped surfaces, proper drainage and gradient management become paramount. Skilled contractors ensure proper water runoff through careful positioning of drainage channels and appropriate fall calculations to prevent pooling and structural damage.

Sloped installations demand enhanced edge restraints at both the top and bottom of the drive. These prevent the entire paved surface from gradually sliding downhill over time.

• Concrete edge beams must be deeper and wider than flat installations
• Additional restraint strips may be required across the slope at regular intervals
• Sub-base preparation needs extra compaction to resist movement
• Mortar pointing along edges provides additional security

Drainage Considerations for Wigan’s Climate

Wigan’s clay-rich soils and high rainfall make proper drainage essential on sloped driveways. Water runoff concentrates at the bottom of slopes, potentially undermining the sub-base.

Channel drains across the slope break up water flow and direct it safely away. Without adequate drainage, the sub-base can wash out, causing blocks to settle unevenly.

Block Selection and Pattern Choice

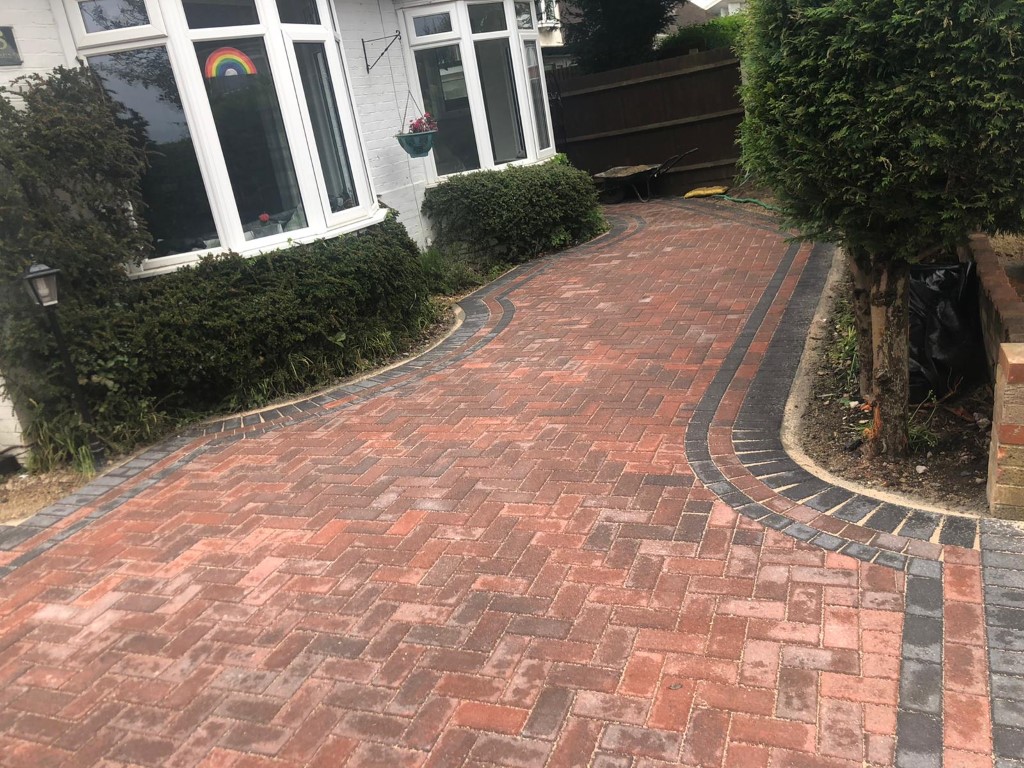

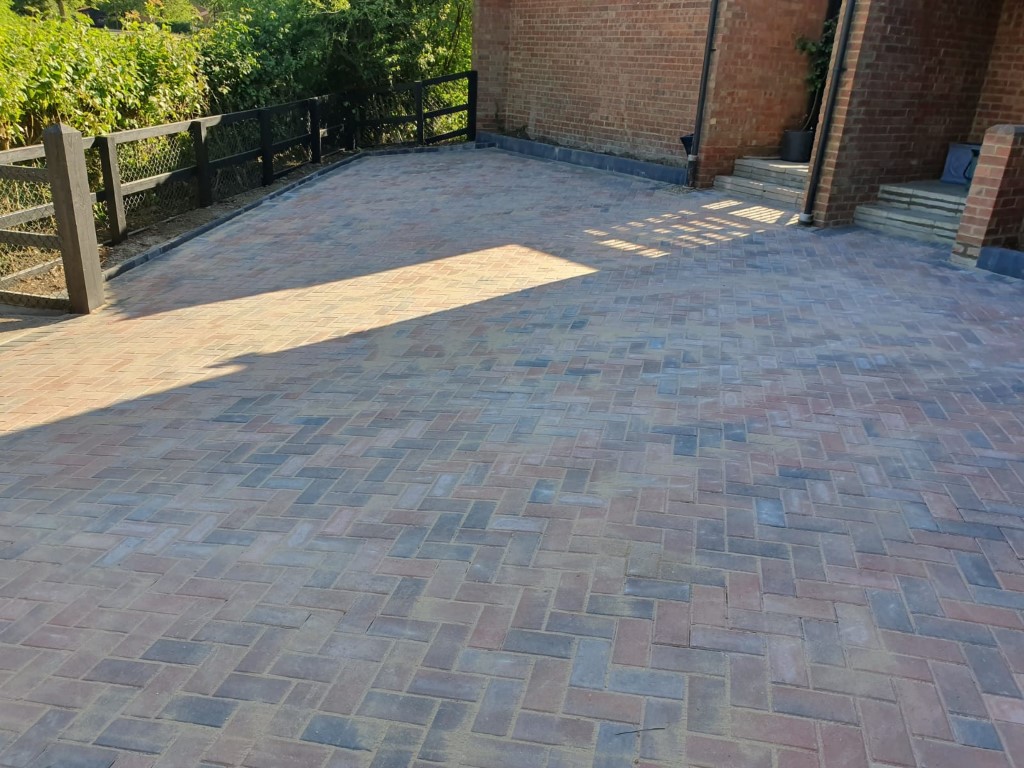

Rectangular blocks in herringbone pattern provide maximum interlock on slopes. This pattern distributes loads effectively and resists the sliding forces that gradients create.

Avoid stretcher bond patterns on slopes as they offer less resistance to movement. Thicker blocks (80mm minimum) perform better than standard 60mm blocks on gradients.
